ONUMEN Smart series & automatic system is a creative solution integrating indoor foldable LED display and automatic lifting and lowering system.

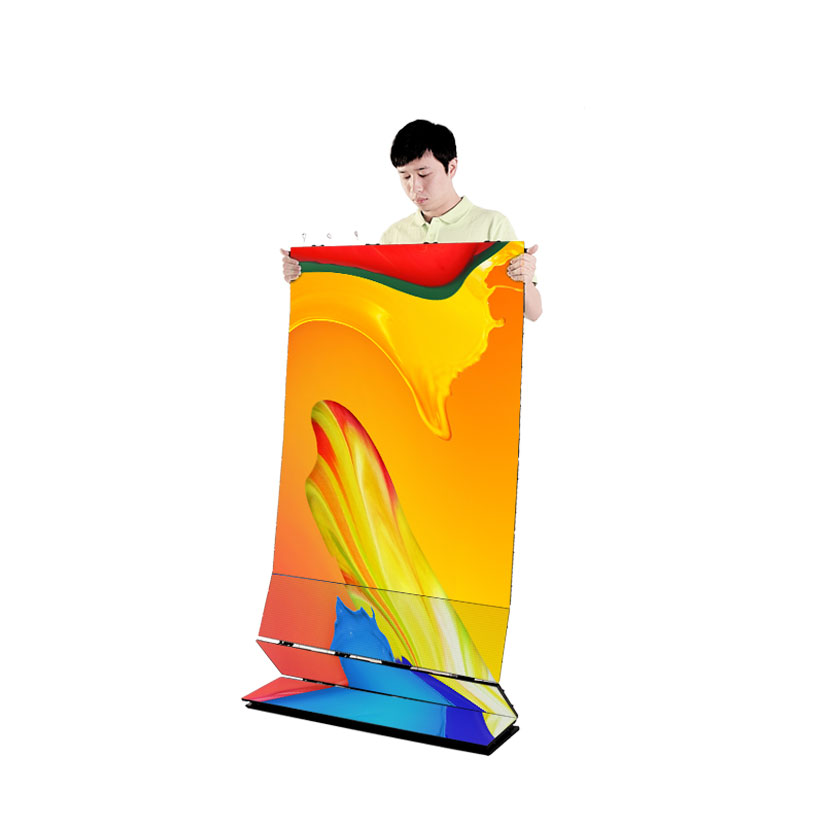

Thin and light, the 360° foldable LED display features remote lifting and lowering, easy storage and hanging installation.
With the electric lifting and lowering device, creative screens can be easily realized for a more desirable viewing experience.
Module size: 250mm * 250mm.

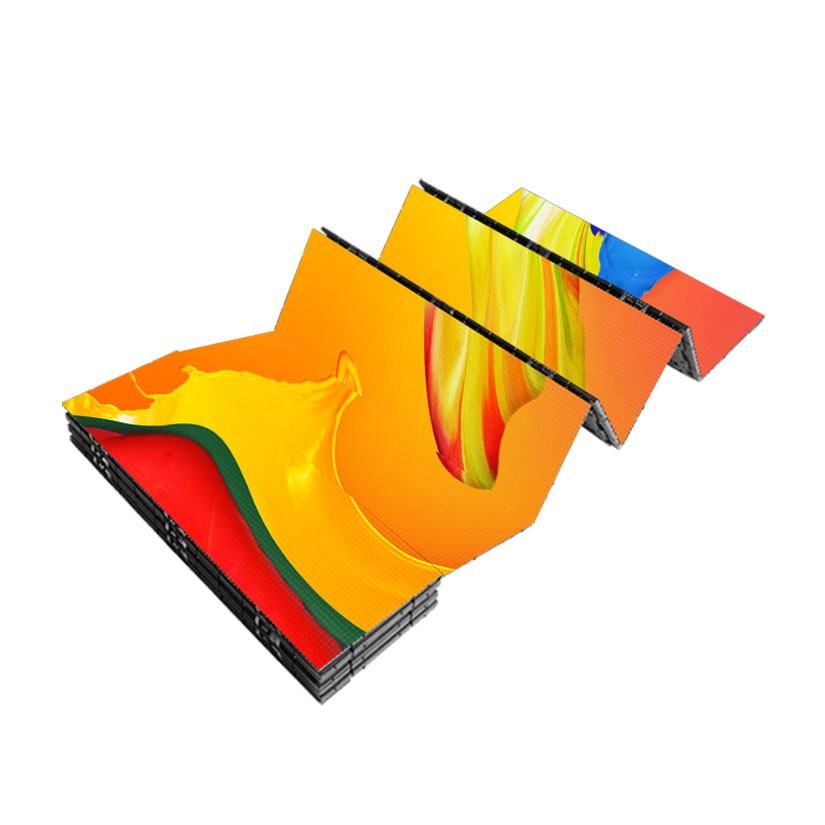

360° foldable.
For indoor use IP43 rating.
Automatic folding and unfolding through the motor and tray.
Improved space efficiency and quick installation.
Prior service with no need for maintenance access.
Thin and foldable, enabling safety excellence and minimal impact in case of dropping.
| Application Environment | Indoor | |||
| Model | Smart 3 | Smart 5 | Smart 6 | Smart 7 |
| Pixel Pitch (mm) | 3.9 | 5.2 | 6 | 7.8 |
| IP Rating | IP43 | IP43 | IP43 | IP43 |
| LED Type | SMD 1010 | SMD 2020 | SMD 1921 | SMD 1921 |
| Pixel Density (pixel/㎡) | 65536 | 36864 | 27777 | 16384 |
| Driving Mode | 1/16 | 1/12 | 1/16 | 1/16 |
| Gray Scale (bit) | 16 | 16 | 16 | 16 |
| Max Brightness (nits) | 1400 | 1500 | 3000 | 1800 |
| Max Refresh Rate (Hz) | 4000 | 5000 | 4000 | 4000 |
| Module Resolution (pixels) | 64 * 64 | 48 * 48 | 32 * 32 | 32 * 32 |
| Module Size (mm) | 250 * 250 | 250 * 250 | 250 * 250 | 250 * 250 |
| Screen Thickness (mm) | 14 | 14 | 16 | 16 |
| Weight (kg/㎡) | 12 | 12 | 10 | 12 |
| Folding Angle | 360° | 360° | 360° | 360° |
| Viewing Angle (H/V) | 110° / 110° | 120° / 120° | 120° / 120° | 120° / 120° |
| Max Power Consumption (w/㎡) | 900 | 670 | 380 | 220 |
| Output Voltage (V) | DC24/48 | DC24/48 | DC24/48 | DC24/48 |
| Input Voltage (V) | AC100 ~ AC240 | AC100 ~ AC240 | AC100 ~ AC240 | AC100 ~ AC240 |
| Max Height of a Panel (m) | 6 | 8 | 9 | 12 |
| Best Viewing Distance (m) | ≥4 | ≥5 | ≥6 | ≥8 |
| Brightness adjustment (levels) (digital) | 256 | 256 | 256 | 256 |
| Brightness adjustment (levels) (analog current) (option) | 64-256 | 64-256 | 64-256 | 64-256 |
| Contrast | 2500:1 | 2500:1 | 2500:1 | 2500:1 |
| Connection Type (standard) (spare) | 2+14pin Soldering 50pin Connector | 2+14pin Soldering 50pin Connector | 2+14pin Soldering 50pin Connector | 2+14pin Soldering 50pin Connector |
| Short Circuit Protection | Yes | Yes | Yes | Yes |
| Quick Maintenance | Yes | Yes | Yes | Yes |
| Controlling Mode | synchronous asynchronous | synchronous asynchronous | synchronous asynchronous | synchronous asynchronous |
| Installation Method | Hanging Magnet mounting | Hanging Magnet mounting | Hanging | Hanging Magnet mounting |
| Operation temperature (℃) | -40 ~ 65 | -40 ~ 65 | -40 ~ 65 | -40 ~ 65 |
| Operation humidity (RH) | 0% ~ 90% | 0% ~ 90% | 0% ~ 90% | 0% ~ 90% |
| Certificate | ROHS FCC TUV CE | |||
