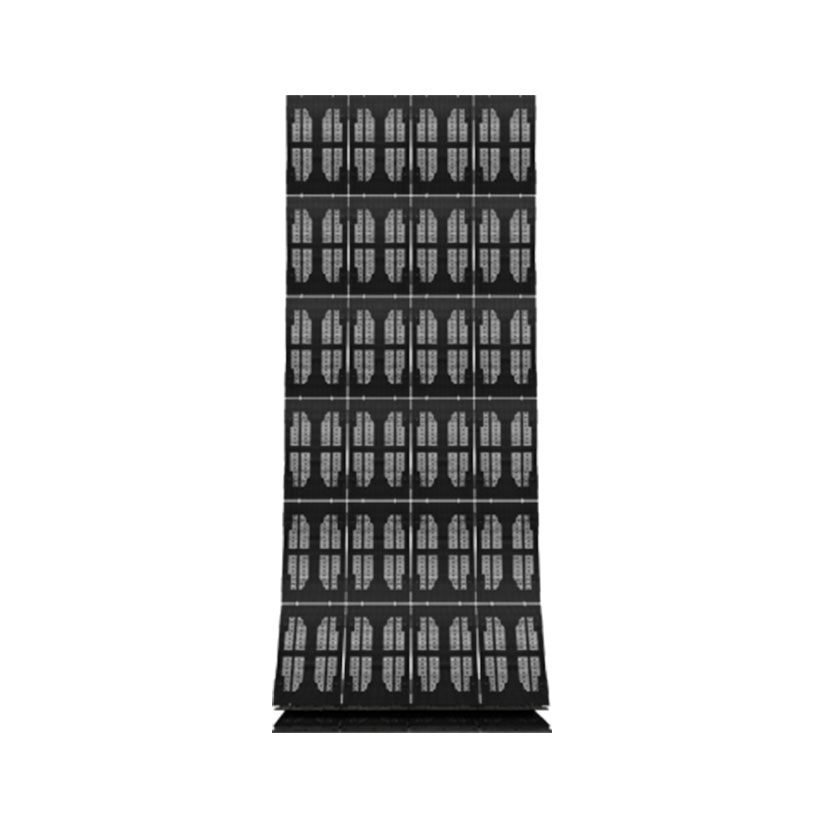

ONUMEN Smart T Plus series & automatic system is a creative solution integrating outdoor foldable LED mesh display and automatic lifting and lowering system.
High brightness, waterproof for outdoor use, thin and light for hanging installation, 360° foldable, one-touch lifting and lowering, tailored sizes; various creative screens are available through the electric lifting and lowering device, making it the best choice for creative screens.
Module size: 250mm * 375mm

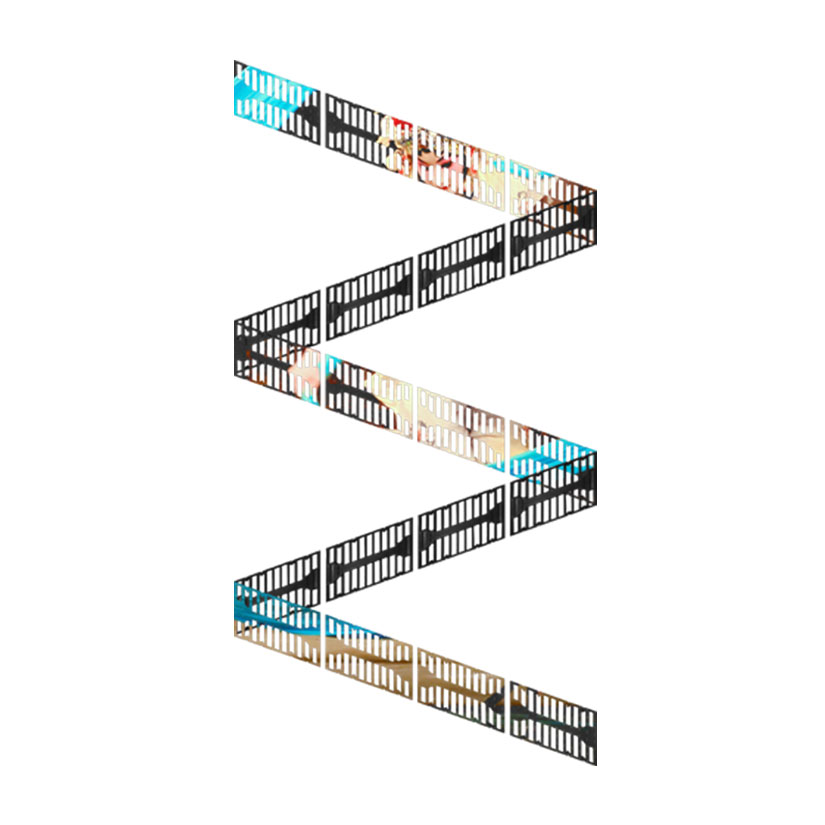

360° foldable
IP65 rating for outdoor use
Mesh design for windproof and waterproof
Automatic folding and unfolding through the motor and tray
Improved space efficiency and quick installation.
Prior & post service with no need for maintenance access.
Thin and light, enabling safety excellence and minimum requirements for weight.
| Application Environment | Outdoor | ||||
| Model | Smart T plus 7 | Smart T plus 10 | Smart T plus 15 | Smart T plus 37 | |
| Pixel Pitch (mm) | 7.8 | 10.4 | 15.6 | 37.5 | |
| IP Rating | IP65 | IP65 | IP65 | IP65 | |
| Transparent rate | 12% | 12% | 14% | 56% | |
| LED Type | SMD 1921 | SMD 2727 | SMD 2727 | SMD 2727 | |
| Pixel Density (pixel/㎡) | 16384 | 9216 | 4096 | 4000 | |
| Driving Mode | 1/4 | 1/4 | 1/2 | Static State | |
| Gray Scale (bit) | 16 | 16 | 16 | 16 | |
| Max Brightness (nits) | 6000 | 6000 | 5000 | 6000 | |
| Max Refresh Rate (Hz) | 7680 | 8000 | 8000 | 64000 | |
| Module Resolution (pixels) | 32 * 48 | 24 * 32 | 16 * 24 | 15 * 12 | |
| Module Size (mm) | 250 * 250 | 250 * 250 | 250 * 375 | 300*450 | |
| Screen Thickness (mm) | 16.5 | 16.5 | 16.5 | 16.5 | |
| Weight (kg/㎡) | 12 | 12 | 12 | 12 | |
| Folding Angle | 360° | 360° | 360° | 360° | |
| Viewing Angle (H/V) | 120° / 120° | 120° / 120° | 120° / 160° | 120° / 160° | |
| Max Power Consumption (w/㎡) | 400 | 560 | 450 | 370 | |
| Output Voltage (V) | DC24/48 | DC24/48 | DC24/48 | DC24/48 | |
| Input Voltage (V) | AC100 ~ AC240 | AC100 ~ AC240 | AC100 ~ AC240 | AC100 ~ AC240 | |
| Max Height of a Panel (m) | 12 | 16 | 24 | 24 | |
| Best Viewing Distance (m) | ≥8 | ≥10 | ≥15 | ≥37.5 | |
| Brightness adjustment (levels) (digital) | 256 | 256 | 256 | 256 | |
| Brightness adjustment (levels) (analog current) (option) | 64-256 | 64-256 | 64-256 | 64-256 | |
| Contrast | 2500:1 | 2500:1 | 2500:1 | 2500:1 | |
| Connection Type (standard) (spare) | 2+14pin Soldering 50pin Connector | 2+14pin Soldering 50pin Connector | 2+14pin Soldering 50pin Connector | 2+14pin Soldering 50pin Connector | |
| Short Circuit Protection | Yes | Yes | Yes | Yes | |
| Quick Maintenance | Yes | Yes | Yes | Yes | |
| Controlling Mode | synchronous asynchronous | synchronous asynchronous | synchronous asynchronous | synchronous asynchronous | |
| Installation Method | Hanging dance floor led display Magnet mounting | Hanging dance floor led display Magnet mounting | Hanging dance floor led display Magnet mounting | Hanging dance floor led display Magnet mounting | |
| Operation temperature (℃) | -40 ~ 65 | -40 ~ 65 | -40 ~ 65 | -40 ~ 65 | |
| Operation humidity (RH) | 0% ~ 90% | 0% ~ 90% | 0% ~ 90% | 0% ~ 90% | |
| Certificate | ROHS FCC TUV CE | ||||
