Waterproof LED displays for outdoor use
ONUMEN Smart T Plus series mesh foldable hanging LED displays for outdoor use.

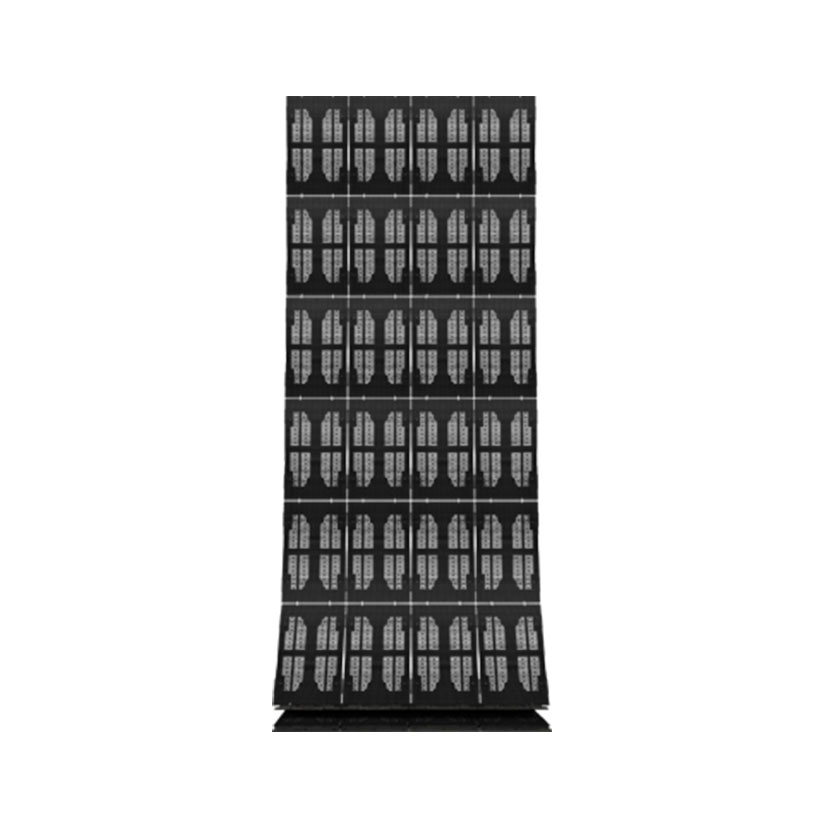

Mesh design with great simplicity and transparency, blocking no view from interior.
Weatherproof LED screen for bright and clear display in wind and rain.
Module size: 250mm * 375mm

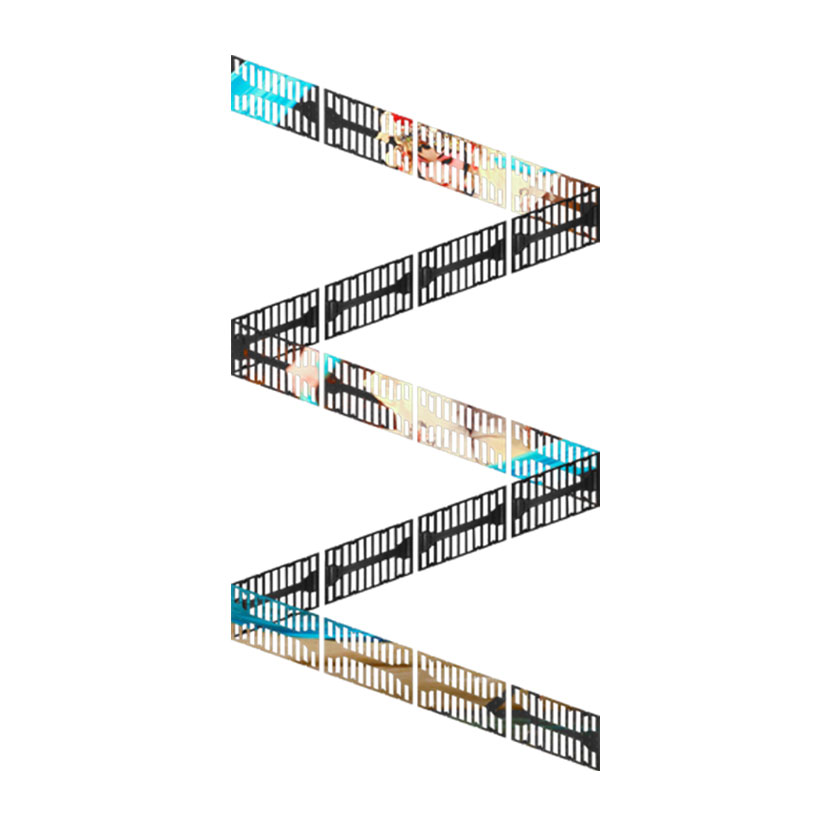

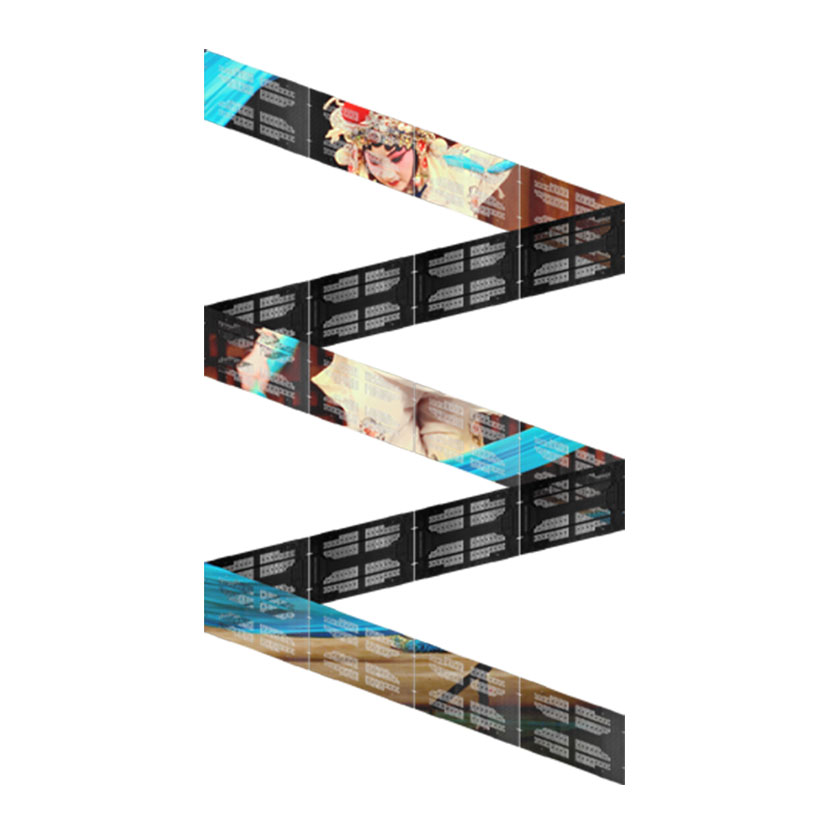

360° foldable
High brightness and IP65 rating with waterproof grout for outdoor use
Slim and light, mesh design, weatherproof
Detachable design for easy installation
Optional motor for one-touch lifting, lowering and folding.
| Application Environment | Outdoor | ||||
| Model | Smart T plus 7 | Smart T plus 10 | Smart T plus 15 | Smart T plus 37 | |
| Pixel Pitch (mm) | 7.8 | 10.4 | 15.6 | 37.5 | |
| IP Rating | IP65 | IP65 | IP65 | IP65 | |
| Transparent rate | 12% | 12% | 14% | 56% | |
| LED Type | SMD 1921 | SMD 2727 | SMD 2727 | SMD 2727 | |
| Pixel Density (pixel/㎡) | 16384 | 9216 | 4096 | 4000 | |
| Driving Mode | 1/4 | 1/4 | 1/2 | 静态 | |
| Gray Scale (bit) | 16 | 16 | 16 | 16 | |
| Max Brightness (nits) | 6000 | 6000 | 5000 | 6000 | |
| Max Refresh Rate (Hz) | 7680 | 8000 | 8000 | 64000 | |
| Module Resolution (pixels) | 32 * 48 | 24 * 32 | 16 * 24 | 15 * 12 | |
| Module Size (mm) | 250 * 250 | 250 * 250 | 250 * 375 | 300*450 | |
| Screen Thickness (mm) | 16.5 | 16.5 | 16.5 | 16.5 | |
| Weight (kg/㎡) | 12 | 12 | 12 | 12 | |
| Folding Angle | 360° | 360° | 360° | 360° | |
| Viewing Angle (H/V) | 120° / 120° | 120° / 120° | 120° / 160° | 120° / 160° | |
| Max Power Consumption (w/㎡) | 400 | 560 | 450 | 370 | |
| Output Voltage (V) | DC24/48 | DC24/48 | DC24/48 | DC24/48 | |
| Input Voltage (V) | AC100 ~ AC240 | AC100 ~ AC240 | AC100 ~ AC240 | AC100 ~ AC240 | |
| Max Height of a Panel (m) | 12 | 16 | 24 | 24 | |
| Best Viewing Distance (m) | ≥8 | ≥10 | ≥15 | ≥37.5 | |
| Brightness adjustment (levels) (digital) | 256 | 256 | 256 | 256 | |
| Brightness adjustment (levels) (analog current) (option) | 64-256 | 64-256 | 64-256 | 64-256 | |
| Contrast | 2500:1 | 2500:1 | 2500:1 | 2500:1 | |
| Connection Type (standard) (spare) | 2+14pin Soldering 50pin Connector | 2+14pin Soldering 50pin Connector | 2+14pin Soldering 50pin Connector | 2+14pin Soldering 50pin Connector | |
| Short Circuit Protection | Yes | Yes | Yes | Yes | |
| Quick Maintenance | Yes | Yes | Yes | Yes | |
| Controlling Mode | synchronous asynchronous | synchronous asynchronous | synchronous asynchronous | synchronous asynchronous | |
| Installation Method | Hanging dance floor led display Magnet mounting | Hanging dance floor led display Magnet mounting | Hanging dance floor led display Magnet mounting | Hanging dance floor led display Magnet mounting | |
| Operation temperature (℃) | -40 ~ 65 | -40 ~ 65 | -40 ~ 65 | -40 ~ 65 | |
| Operation humidity (RH) | 0% ~ 90% | 0% ~ 90% | 0% ~ 90% | 0% ~ 90% | |
| Certificate | ROHS FCC TUV CE | ||||
